Mini Z 15.6 USBC Console Kit

High Performance Console with One Comprehensive Input Port

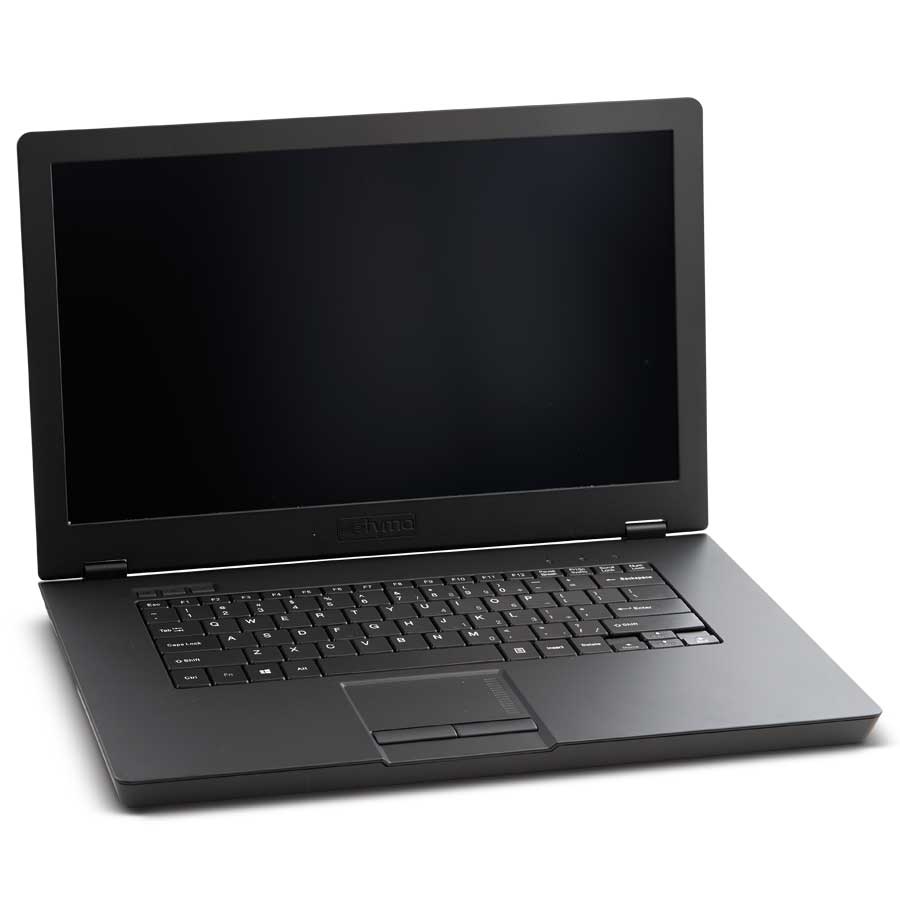

Mini Z 15.6 USBC Console Kit is a high performance KVM console that combines a Full HD 15.6” LCD monitor with keyboard and touch pad in a small form factor. This console features just one input port which takes care of the DisplayPort Signal, USB2 Signal (Keyboard/Touchpad) and Power, making it one of its kind in the industry. The Full HD display supports video resolutions from 640 x 480 through 1920 x 1080 at 60 and 75 Hz refresh rates.

Product Features

  • 6 – inch Screen
  • Full HD Flat Panel LCD
  • Low profile keyboard
  • 2-Button Capacitive Touchpad and Scroll Bar
  • Connectivity: USBC (keyboard, Touchpad, Video and Power)
  • OSD Language Support: English, French, German, Japanese, Simple Chinese and Spanish
  • Rack Space: <1U
  • Operating System Support: Windows Server, RHEL, SLES
  • Supported Refresh Rates: 60 and 75
  • Maximum Resolution 1920 X 1080
  • One Year Limited Warranty

Purchase our Mini Z high-performance USBC Console Kit

Technical Specs for 15.6 USBC Console Kit

Physical Dimensions
H x W x D
1.0 x 15.0 x 9.5 inches
2.54 x 38.1 x 24.1 cm
Weight
4.83 lbs. (2.2Kg)
Shipping Dimensions
Package (L x W x D)
19.5 x 5.0 x 13.4 inches
49.5 x 12.7 x 34.03 cm
Weight
6.12 lbs. (11.45 kg)
Display
Type
TFT
Display
LCD with Backlight
Viewable (diagonal)
H = 178° V = 178°
Maximum Resolution
1920 x 1080
Response Time
TR = 14ms TF = 11ms
Brightness
300cd/m²
Contrast Ratio
700 : 1
Supported Graphics
Full HD
640 x 480 through 1920 x 1080
Refresh Rates
60 and 75 Hz
Power Source

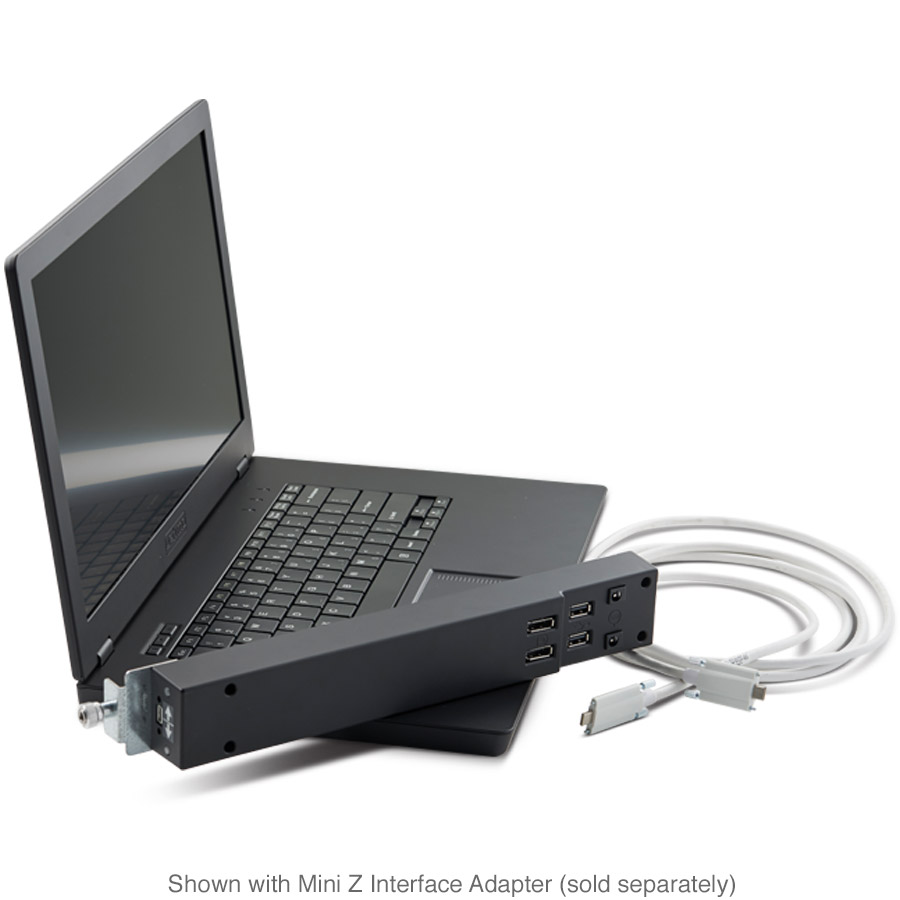

Interface Adapter
5 V DC / 3 A
Maximum Power
11W
Keyboard Keys
84 keys layout (including 2 touchpad keys)
also includes inverted T scroll keys and Windows keys
Keyboard/Touchpad Output
USB-C
Environmental Temperature
Operating
0° C to 55°C
Storage
-20°C to +60°C
Humidity
Operating
20% RH to 90% RH
Storage
10% RH to 90% RH
Altitude
Operating
5000 meters max
Storage
5000 meters max
