Mini Z Interface Adapter

KVM Connection for two directly attached servers or computers

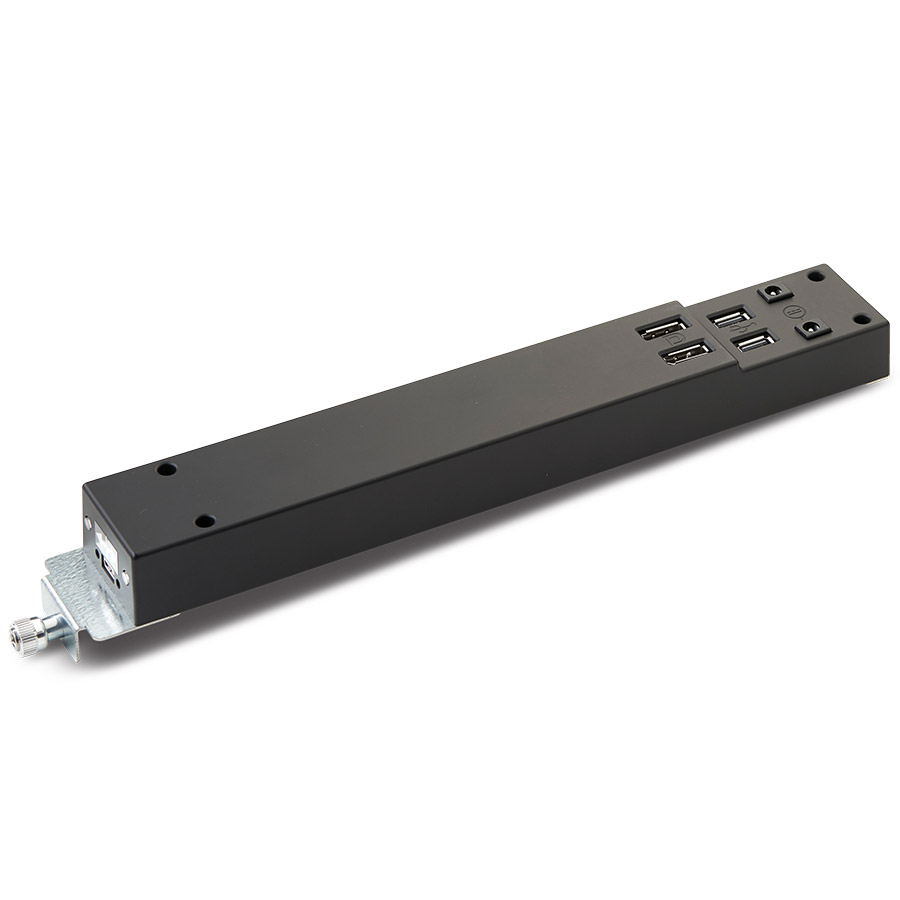

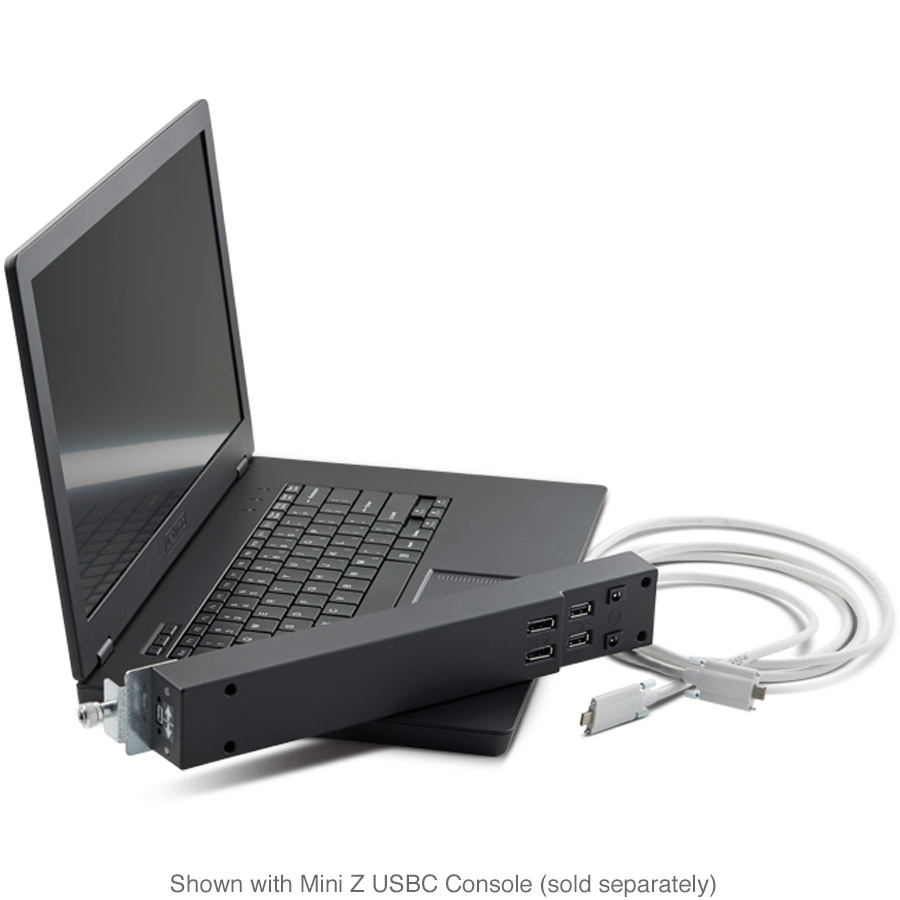

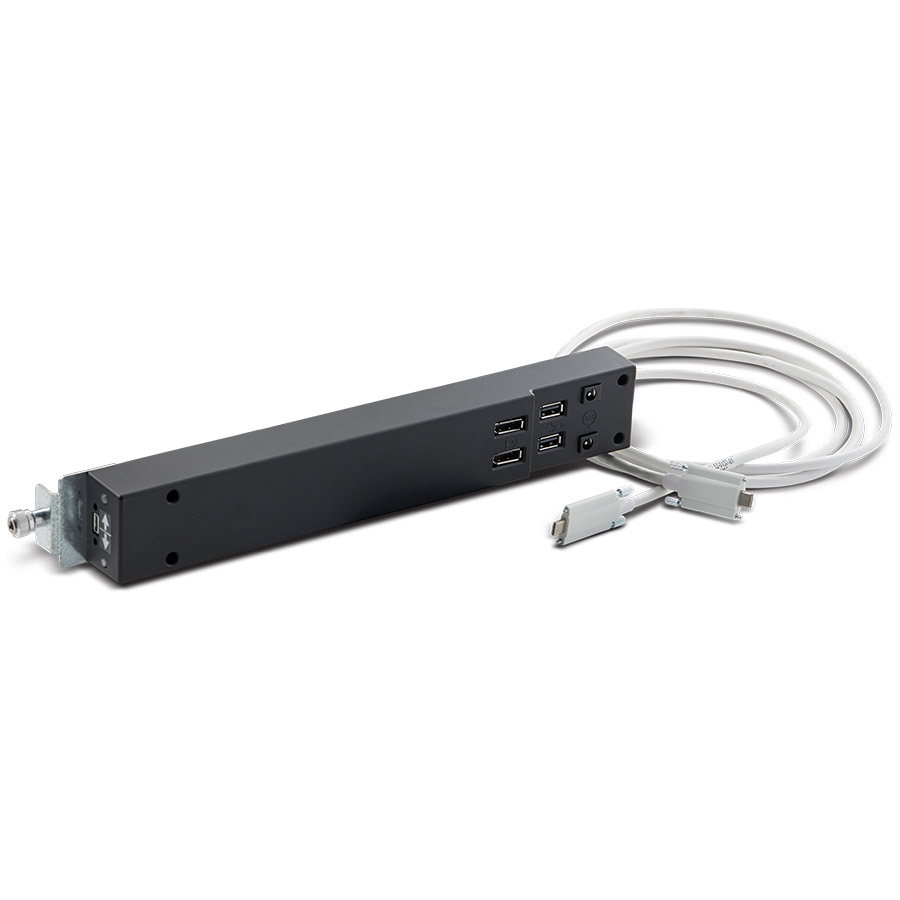

Designed to work with the 15.6 USBC console kit, the Mini Z IA (Interface Adapter) is a Console Switch that can provide Keyboard, Video and Mouse (KVM) connection for two directly attached Servers or Computers. This IA takes DisplayPort Video, keyboard/touchpad signals and power from the server and multiplexes everything to DisplayPort Alternate mode signal with Power Delivery over a single USB-C cable. It has two physical switches (with LED) in the front to switch between the servers. The video port on the IA is a DisplayPort which supports resolution from 640 x 480 to 1920 x 1080.

Product Features

  • Two Ports
  • Maximum Resolution: 1920 X 1080
  • Supported Refresh Rates: 60 and 75
  • Connectivity Input: USB2 for Keyboard and Touchpad DisplayPort for Graphics or Video ANDDC Power Jack for Power
  • Connectivity Output: USB-C
  • Rack Space: <1U
  • Operating System Support: Windows Server, RH Linux, SLES Linux
  • One-year Limited Warranty

Purchase our Mini Z high-performance Interface Adapter

Technical Specs for Mini Z Interface Adapter

Physical Dimensions
H x W x D
1.0 x 1.9 x 13.6 inches
2.54 x 4.83 x 34.5 cm
Weight
0.86 lbs. (0.39Kg)
Shipping Dimensions
Package (L x W x D)
18.2 x 3.5 x 4.5 inches
46.2 x 8.9 x 11.4 cm
Weight
1.36 lbs. (0.62 kg)
Supported Graphics
Full HD
640 x 480 through 1920 x 1080
Refresh rates
60 and 75 Hz
Power Source
DC Power Source
12 V DC / 5 A
Maximum Power
11W
Environmental Temperature
Operating
0° C to 50°C
Storage
-20°C to +60°C
Humidity
Operating
20% RH to 90% RH
Storage
10% RH to 90% RH
Altitude
Operating
5000 meters max
Storage
5000 meters max
